2.5-layer (“EX” weave) Forming Fabrics
2.5-layer (“EX” weave)
2.5-layer (“EX” weave)
To further improve the characteristics of double-layer design, the sheet-side weft density is increased. The result is better sheet support that improves wire mark, retention, and the surface properties of the paper. In Addition, the number of weft yarns on the machine side are reduced so that the three-dimensional space (void volume) is increased for enhanced drainage capability. This design is commonly known as 2.5-layer weave, or “EX” weave.
7-shed “EX” weave
7-shed “EX” weave
Provides an excellent surface property. Enhanced sheet support enables better surface smoothness. With the open-structured back side realizes improved drainage and contamination prevention.
8-shed “EX” weave
8-shed “EX” weave
Provides just about the same properties as 7-shed. It has higher drainage capability.
14-shed
14-shed
Improved LL-E type. Superior in surface property and abrasion resistance due to its long-knuckle structure on the wear side.
16-shed “EX” weave
16-shed “EX” weave
Improved 8-shed“EX” type. It has an excellent abrasion resistance property.
LL-E Series

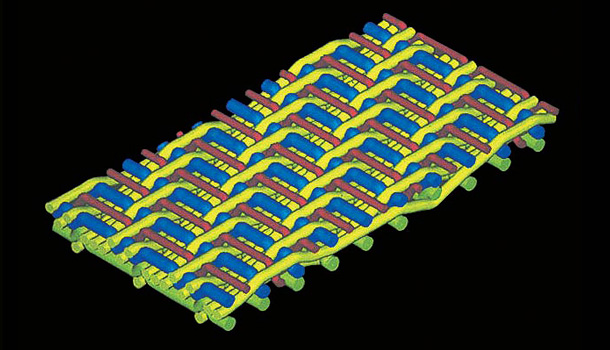

LL-E Series – 2.5-layer Design
Sheet side properties are improved by increased sheet support points. The open-structured wear side enables improved drainage capability and reduced contamination.
Sheet Side
Wear Side
Sheet Side Print Marks
Wear Side Print Marks
MD
CD
Applications
| Design | Paper Grade |
| LL-40E | Printing paper, Wrapping paper, Board grade, Onion-skin paper, Newsprint |
| LL-70E | Printing paper, Wrapping paper, Board grade, Onion-skin paper, Newsprint |
LL-FE Series

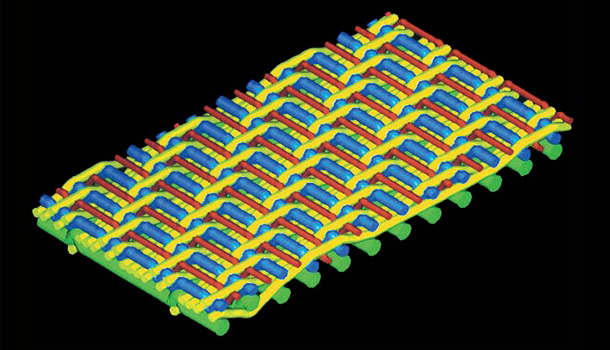

LL-FE Series – 2.5-layer Design
Keeps good sheet support as other 2.5-layer products. It provides excellent drainage capability as well as superior abrasion resistance.
Sheet Side
Wear Side
Sheet Side Print Marks
Wear Side Print Marks
MD
CD
Applications
| Design | Paper Grade |
| LL-4FE | Printing paper, Board grade |
| LL-7FE | Printing paper |
SS-E Series

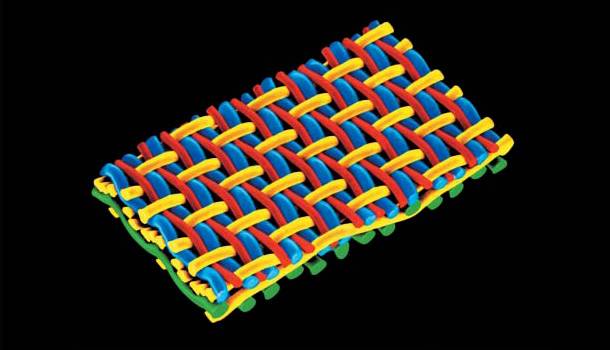

SS-E Series – 2.5-layer Design
Provides good sheet support and excellent drainage capability.
Sheet Side
Wear Side
Sheet Side Print Marks
Wear Side Print Marks
MD
CD
Applications
| Design | Paper Grade |
| SS-20E | Board grade |
| SS-40E | Printing paper, Wrapping paper, Board grade, Onion-skin paper, Newsprint |
| SS-70E | Printing paper, Wrapping paper, Tissue paper, Onion-skin paper, Newsprint |
SS-BE Series

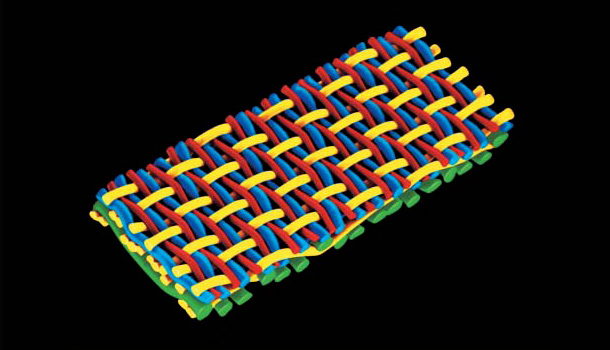

SS-E Series – 2.5-layer Design
Provides good sheet support, drainage ability and abrasion resistance properties.
Sheet Side
Wear Side
Sheet Side Print Marks
Wear Side Print Marks
MD
CD
Applications
| Design | Paper Grade |
| SS-2BE | Board grade |
| SS-4BE | Printing paper, Wrapping paper, Board grade |
